Wazuh → n8n → AI → Slack: Automated SOC Alert Triage Lab

A home-lab project where Wazuh security alerts are automatically sent to an n8n workflow, analysed by an LLM acting as a SOC analyst, and delivered as a clean, structured message in Slack.

Author: Aziz Zarrouk, Computer Science Engineering student (ESPRIT), interested in cybersecurity and automation. GitHub: Az1zzr

1. Goal

When an analyst gets a raw Wazuh alert (a big JSON blob), they still have to read it, understand it, map it to MITRE ATT&CK and decide what to do. I wanted to automate that first step:

1. Wazuh detects something suspicious on an endpoint.
2. The alert is forwarded to n8n through a webhook.
3. Only alerts above a severity threshold go to the AI.
4. The AI writes a short, evidence-based SOC summary.
5. The summary is posted to a Slack channel.

2. Architecture

flowchart LR
    A[Windows 10 VM
Wazuh agent
Testscript.ps1] -->|events| B[Wazuh Server 4.14.7
rules + alerts]
    B -->|custom-n8n integration
HTTP POST JSON| C[n8n Webhook
self-hosted on VPS]
    C --> D[Extract Alert Context
Set node]
    D --> E{If
rule level >= 10}
    E -- yes --> F[AI Agent
OpenRouter chat model
SOC analyst prompt]
    E -- no --> X[Ignored]
    F --> G[Slack
#n8n-automation-security]

3. Repository structure

.
├── README.md
├── integration/
│   ├── custom-n8n                  # Wazuh integration script (Python)
│   └── ossec-integration-block.xml # Block added to ossec.conf
├── testing/
│   ├── Testscript.ps1              # Encoded PowerShell test (runs on the Windows VM)
│   └── mock-alert.sh               # Fake alert to test the webhook alone
└── screenshots/                    # 7 numbered screenshots used below

4. Setup, step by step

Step 1: Create the n8n webhook

In n8n I added a Webhook node:

• HTTP method: POST
• Path: wazuh-alert
• Respond: Immediately

n8n gives two URLs: a Test URL (/webhook-test/...) and a Production URL (/webhook/...). The Wazuh integration uses the production one.

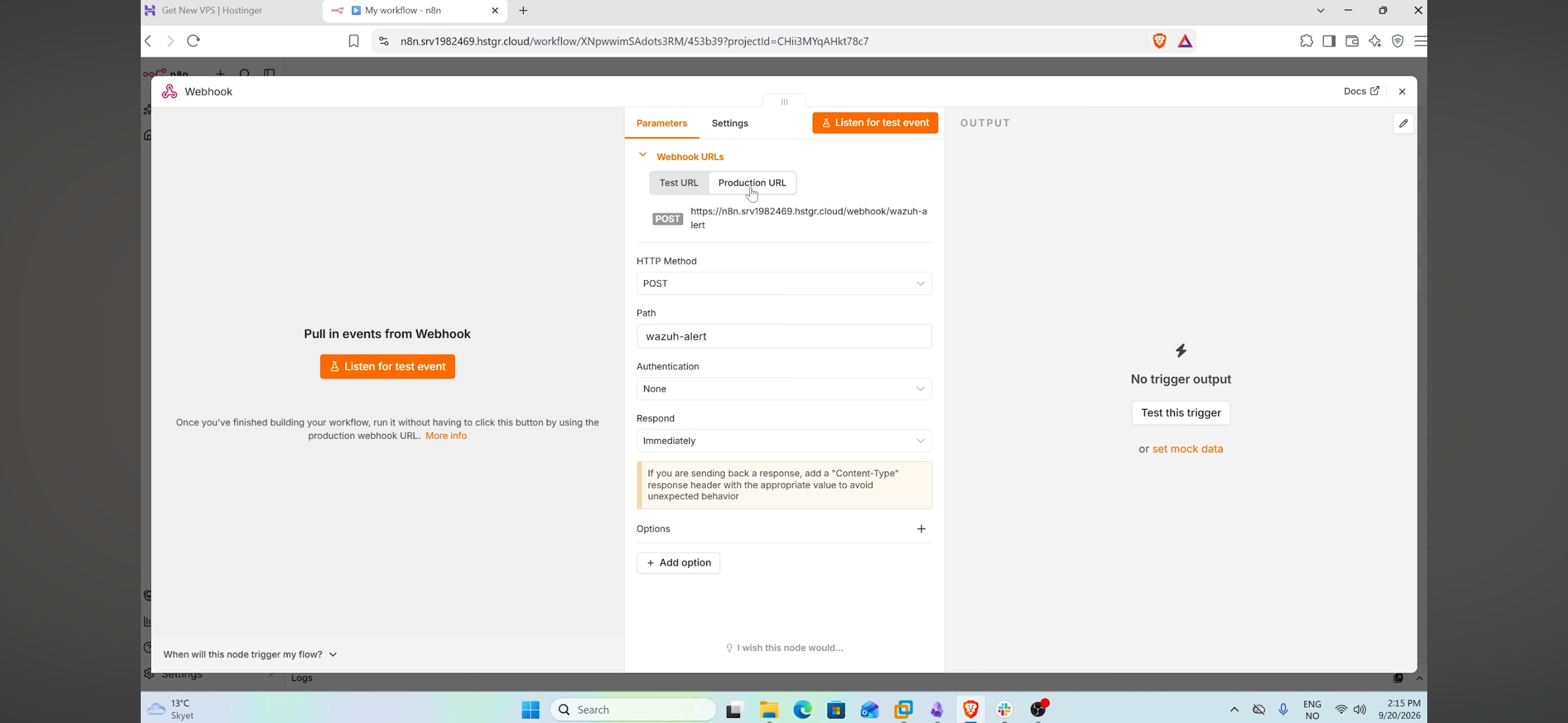

Screenshot 1: Webhook node configured with POST and the path wazuh-alert, with the Production URL selected.

Step 2: Test the webhook with a fake alert

Before touching Wazuh, I checked the n8n side by sending a mock alert with curl from the Windows VM (see testing/mock-alert.sh).

The first call returned a 404 ("webhook not registered"), because in test mode the webhook only listens once, after clicking Execute workflow / Listen for test event. After clicking it, the second call returned {"message":"Workflow was started"}.

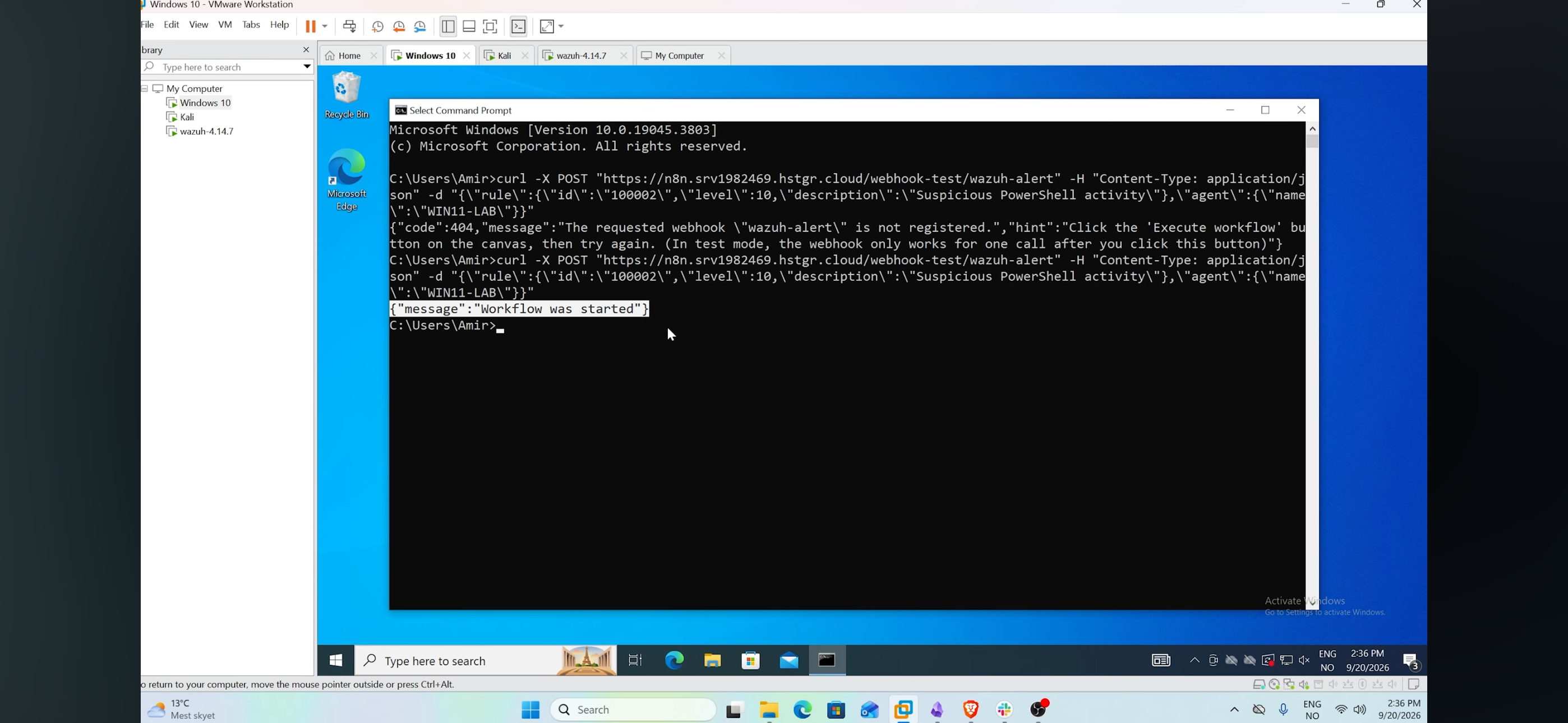

Screenshot 2: First call gives 404 (not listening), second call returns "Workflow was started".

Step 3: Extract the useful fields (Set node "Extract Alert Context")

The raw Wazuh alert is large, so a Set node keeps only what the AI needs: rule id, rule level, description, event id, provider, user, process, command line, parent process, target file, process ids, MITRE technique and raw message. Expressions look like {{ $json.body.rule.description }}.

Fields that don't exist in a given alert come out as undefined. That is normal, since different event types contain different fields, and the prompt is written to handle it.

Step 4: Filter by severity (If node)

An If node keeps only alerts where rule.level >= 10. Lower-level noise never reaches the AI, which saves API cost and avoids flooding Slack.

Step 5: AI analysis (AI Agent + OpenRouter)

An AI Agent node uses an OpenRouter Chat Model (deepseek/deepseek-v4-flash) with a SOC analyst prompt. The important design choices in the prompt:

• Use only facts present in the alert fields.
• Do not invent MITRE techniques, event IDs, processes, users or commands.
• Treat null / undefined / empty fields as missing information, never infer them.
• Clearly separate observed evidence from analysis.
• Output a fixed Slack-friendly (mrkdwn) structure: Host, User, Process, Severity, What happened, Observed command, Decoded content, Why it matters, MITRE ATT&CK, Recommended action.

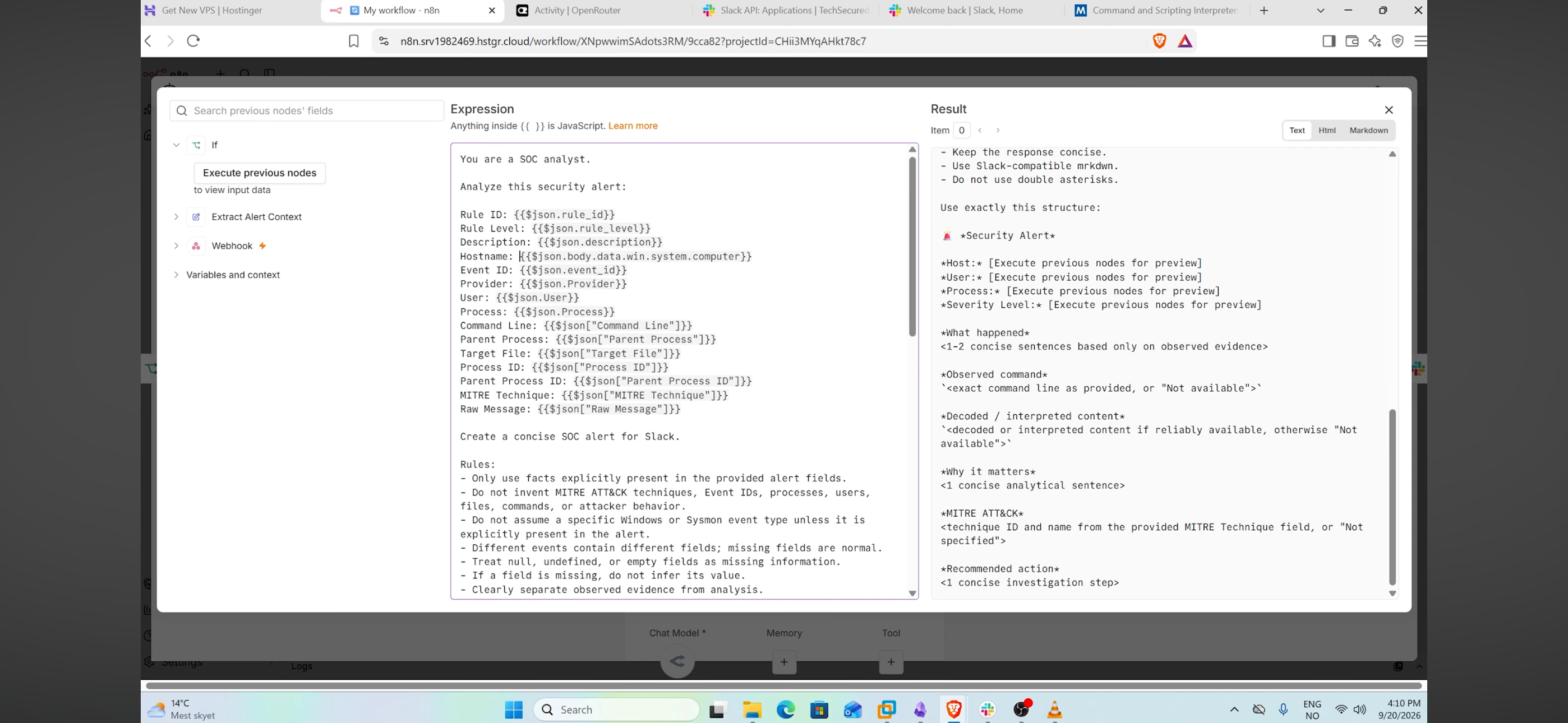

Screenshot 3: The prompt expression in n8n (left) and the output template preview (right).

Step 6: Send to Slack

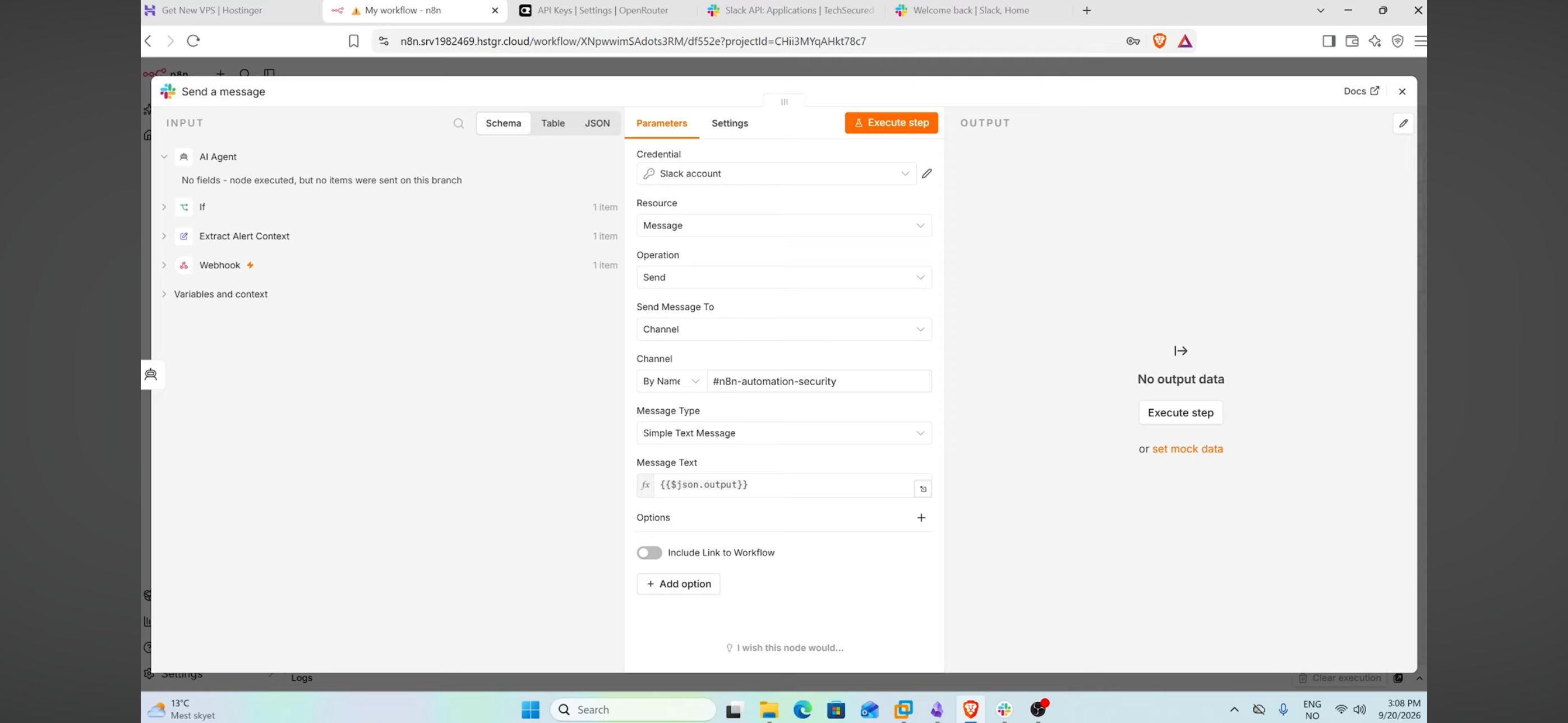

A Slack → Send a message node posts {{ $json.output }} (the AI result) to the channel #n8n-automation-security. The Slack app uses a bot access token and a signing secret stored as an n8n credential (never committed to this repo).

Step 7: The Wazuh integration script

Wazuh runs custom integrations from /var/ossec/integrations/. I created custom-n8n, a small Python script that reads the alert file Wazuh gives it and POSTs the JSON to the webhook:

sudo nano /var/ossec/integrations/custom-n8n

Wazuh calls the script with <alert_file> <api_key> <hook_url>, so the script reads sys.argv[1] (alert file) and sys.argv[3] (hook URL). Full code: integration/custom-n8n.

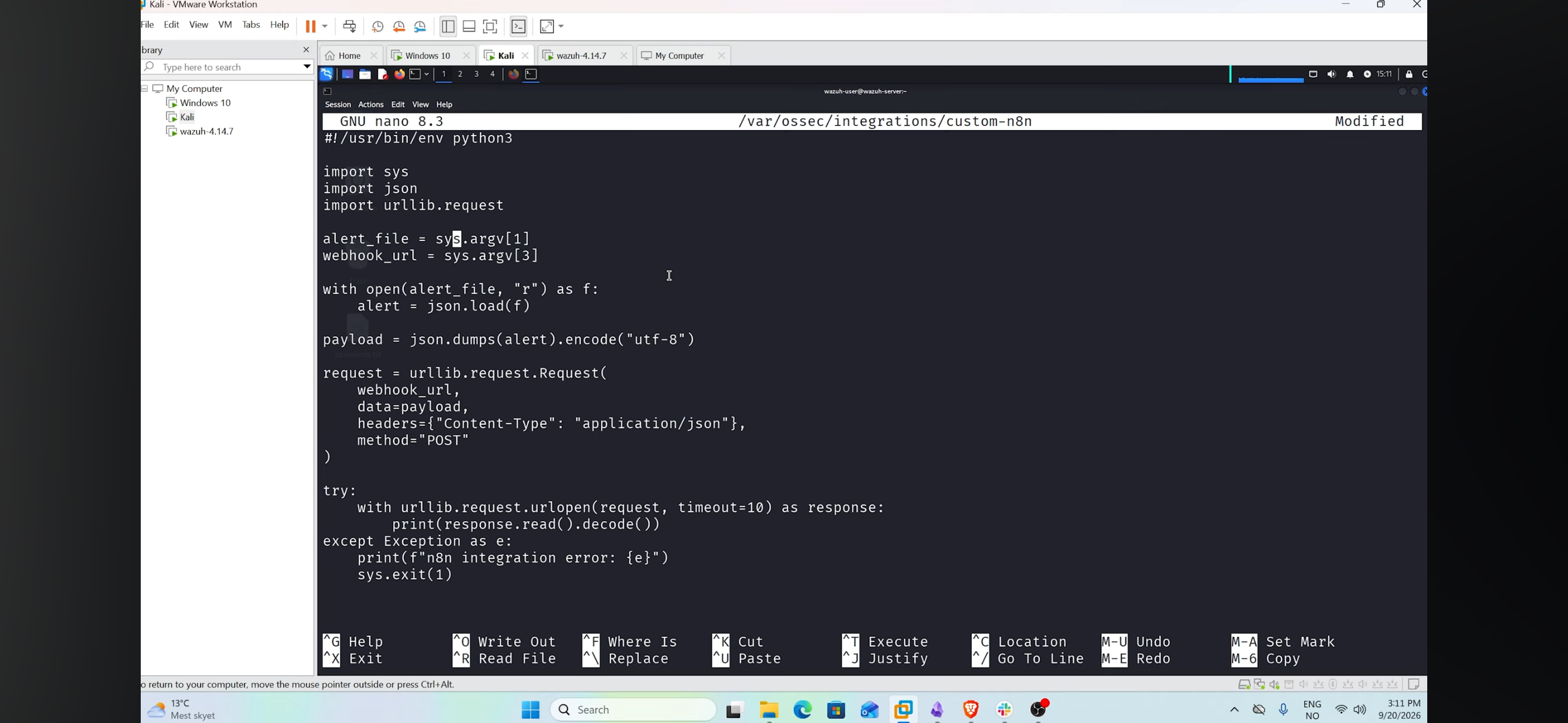

Screenshot 4: The custom-n8n script open in nano on the Wazuh server.

Step 8: Permissions

Wazuh only executes integration scripts that are owned by root with group wazuh, and not world-accessible:

sudo chmod 750 /var/ossec/integrations/custom-n8n
sudo chown root:wazuh /var/ossec/integrations/custom-n8n

Step 9: Register the integration in ossec.conf

In /var/ossec/etc/ossec.conf I added an <integration> block just before </ossec_config> (template: integration/ossec-integration-block.xml):

<integration>
  <name>custom-n8n</name>
  <hook_url>https://the-n8n-domain/webhook/wazuh-alert</hook_url>
  <level>7</level>
  <alert_format>json</alert_format>
</integration>

I restarted afterwards (sudo systemctl restart wazuh-manager).

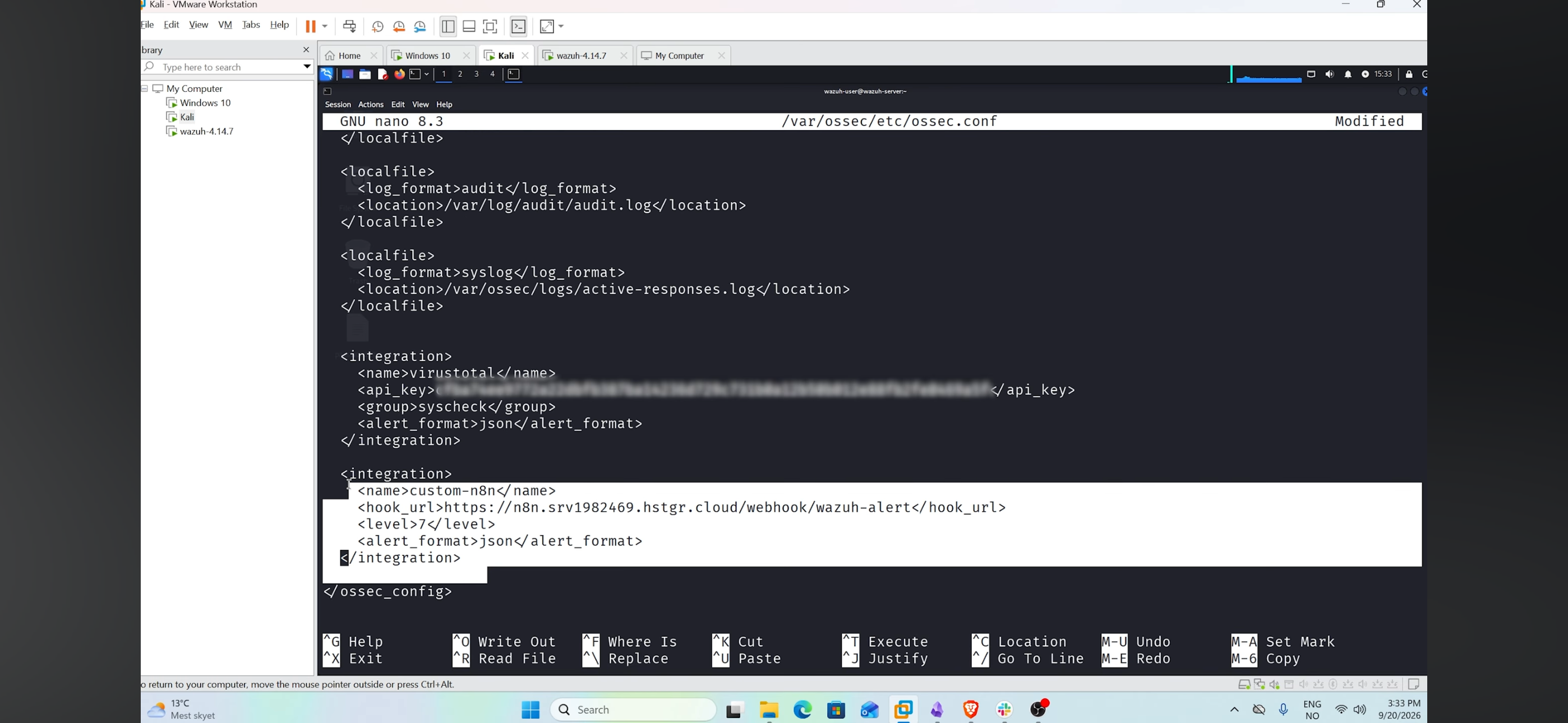

*Screenshot 5: The new custom-n8n integration block in ossec.conf, next to the existing VirusTotal integration .

5. Testing

To generate a realistic alert I wrote a harmless script, testing/Testscript.ps1, that runs a command through PowerShell -EncodedCommand (Base64 of a UTF-16LE string). Encoded commands are a common obfuscation technique (MITRE T1059.001 – Command and Scripting Interpreter: PowerShell), so they are a good thing for a SIEM to flag, while the payload here is only Write-Output "n8n-wazuh-test".

$cmd = 'Write-Output "n8n-wazuh-test"'
$bytes = [System.Text.Encoding]::Unicode.GetBytes($cmd)
$encoded = [Convert]::ToBase64String($bytes)
powershell.exe -EncodedCommand $encoded

I ran it in PowerShell ISE on the Windows 10 VM.

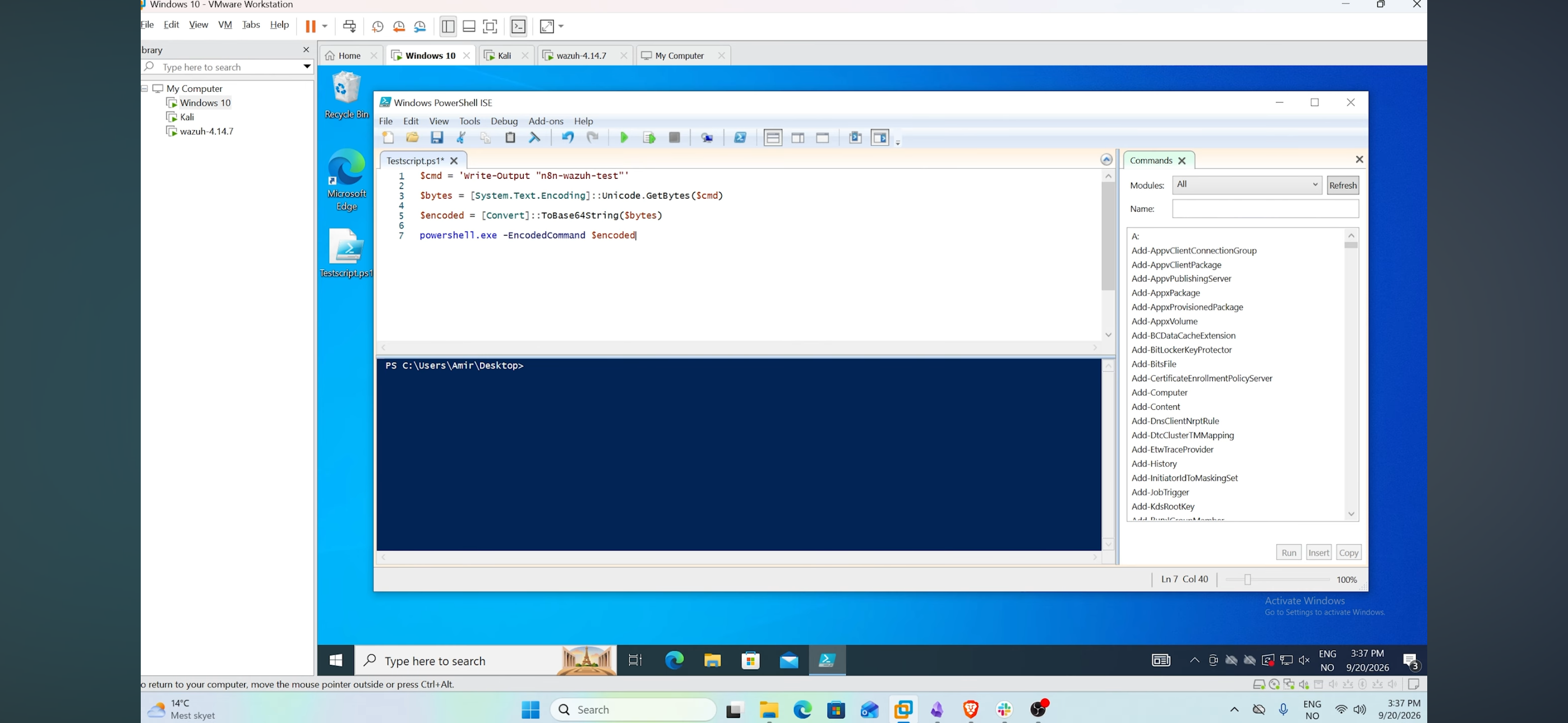

Testscript.ps1 in PowerShell ISE on the Windows VM.*

6. Results

The full chain worked end to end: the encoded PowerShell command was detected, forwarded by Wazuh to n8n, summarised by the AI and posted in Slack with:

• the process and user involved,
• the observed command line and its decoded content,
• why it matters (encoded commands are used to hide intent, but the decoded content here is benign),
• the MITRE technique T1059.001 – PowerShell,
• a recommended action (confirm with the user whether the script was an authorised test).

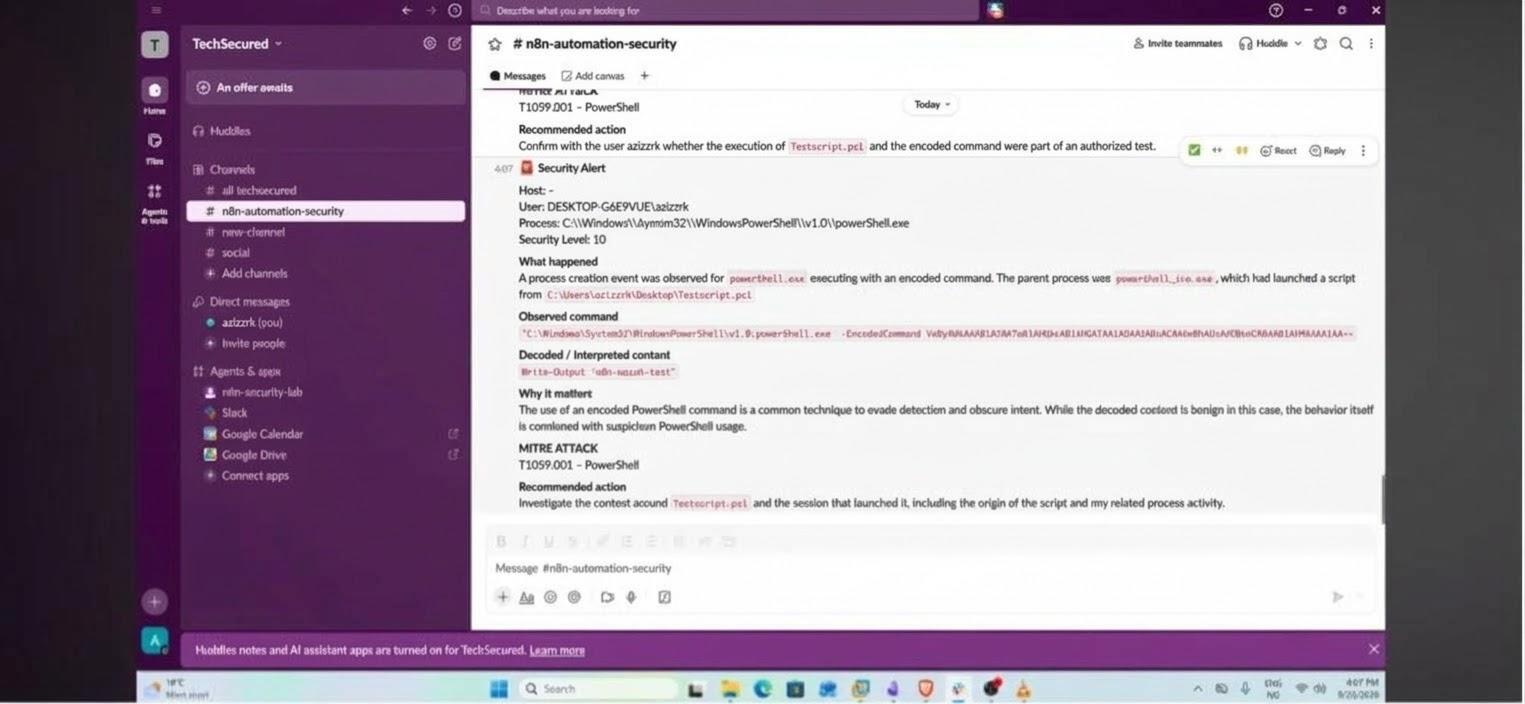

The final AI-generated "Security Alert" in the #n8n-automation-security Slack channel.*

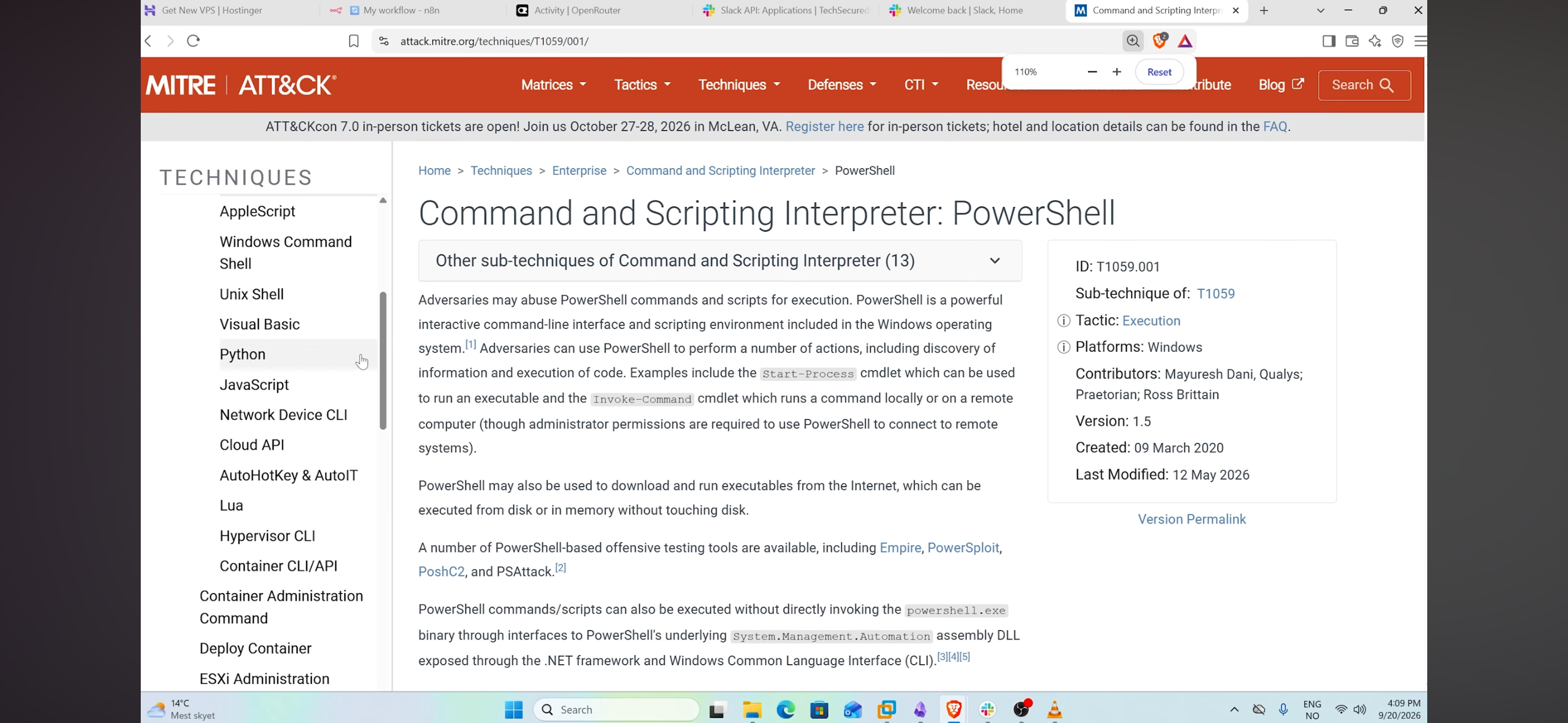

I also checked the technique ID against the official MITRE ATT&CK page for T1059.001 to confirm the AI's mapping was right.

7. Lessons learned

1. Test each hop separately. Testing n8n with curl first made it easy to know the problem was not on the Wazuh side.
2. Test URL vs Production URL. The test webhook only listens for one call after you click "Listen".The Wazuh integration must use the production URL and the workflow must be active.
3. Prompt guardrails matter. Without "only use provided facts / don't invent", LLMs happily make up MITRE techniques or event IDs.Telling the model that missing fields are normal gave much more trustworthy output.
4. Not every alert has every field. My field mappings returned undefined for some Windows event fields, and the Slack message showed Host: -.

The hostname/user paths differ per event type, so the extraction needs to be checked against real alerts, not only mock ones. 5. Two thresholds. Wazuh forwards level ≥ 7, n8n only processes level ≥ 10.It is a simple but effective way to control noise and cost. 6. File permissions are part of the integration. A wrong owner or mode on custom-n8n means Wazuh silently refuses to run it. 7. Secrets hygiene. API keys, Slack tokens and signing secrets live in n8n credentials / ossec.conf and must never be pushed to GitHub (I blurred the VirusTotal key in a screenshot).

8. Limitations and next steps

• Add retries/error handling in n8n if the LLM or Slack is unavailable.
• alerts (IP reputation, file hashes) before the AI step.
• Add more detection use cases (brute force, new admin user, suspicious network connections).

make sure the company you work for allow you sharing the data to the llm
